Photos of constructed bridges with the following spans:
·1'·7'·8'·11'·12'·14'·15'·16'·17'·18'·22'·23'·24'·25'·27'·27'·27'·28'·30'·32'·36'·38'·40'·50' ·
·0,3·2,1·2,4·3,3·3,8·4,2·4,5·4,8·5,1·5,4·6,6·6,9·7,3·7,5·8,1·8,1·8,1·8,4·9·9,6·10,8·11,4·12·15 ·m

27' / 8,1m
using 2x4s

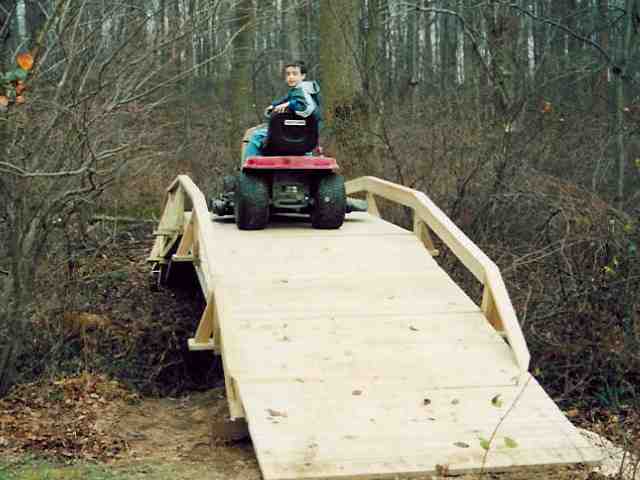

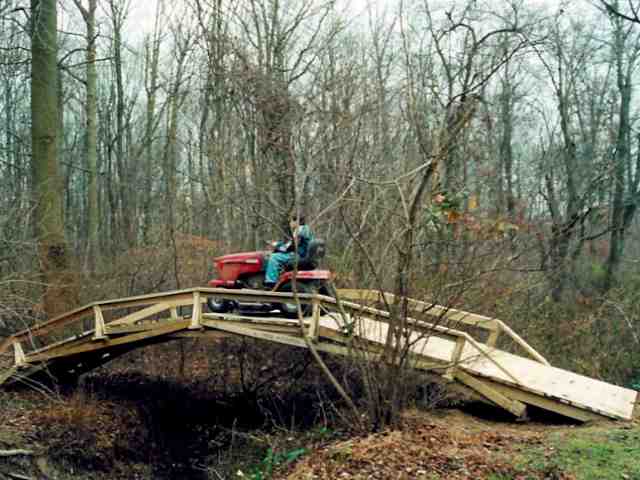

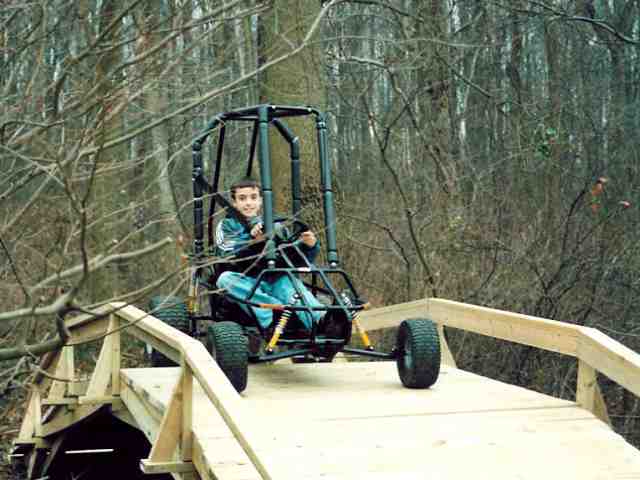

A 27' Bridge

I was always wondering if I should have just bought all the lumber locally
and just copy your plan from the web, but getting all the wood pre-cut and
ready to go was absolutely the right thing to do. I could never had done
such a good job with all those angles. I'll say it again, you are making
this project extremely easy.

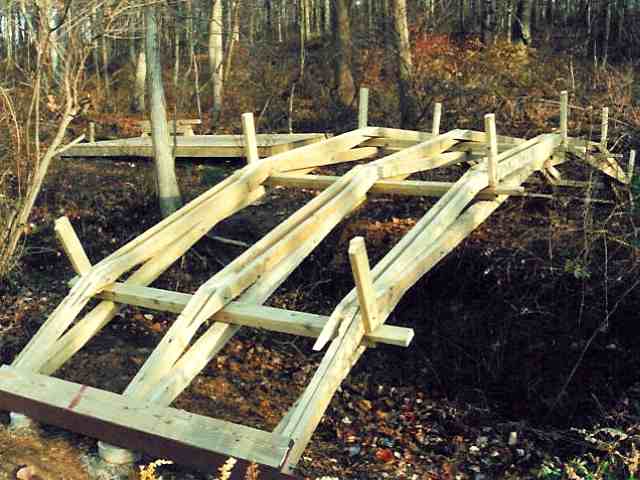

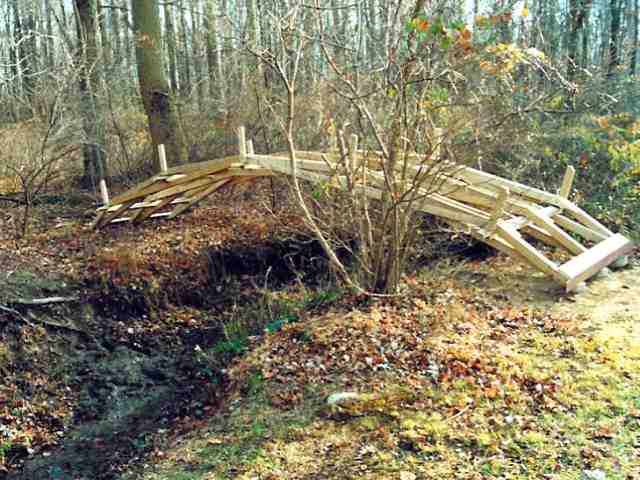

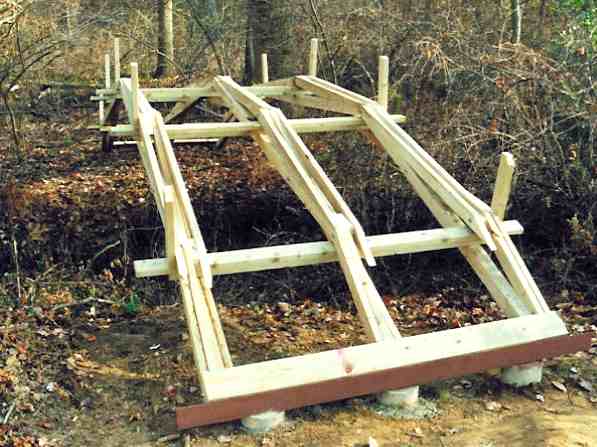

I took a couple shots to show you how far I was able to get last week,
and to show you it arrived just fine. If this mild weather continues,
I'll be able to finish it up this week-end. The wooden structure in
the background is the floor to the shed I'm also building.

It's been a real pleasure doing business with you. If you ever need
another reference, let me know.

George PA

The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-) Frank Petersohn
