Photos of constructed bridges with the following spans:
·1'·7'·8'·11'·12'·14'·15'·16'·17'·18'·22'·23'·24'·25'·27'·27'·27'·28'·30'·32'·36'·38'·40'·50' ·
·0,3·2,1·2,4·3,3·3,8·4,2·4,5·4,8·5,1·5,4·6,6·6,9·7,3·7,5·8,1·8,1·8,1·8,4·9·9,6·10,8·11,4·12·15 ·m

28' / 8,4m
using 2x6s

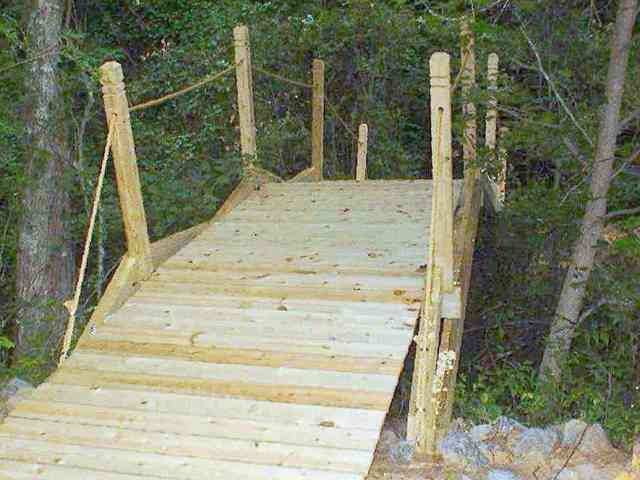

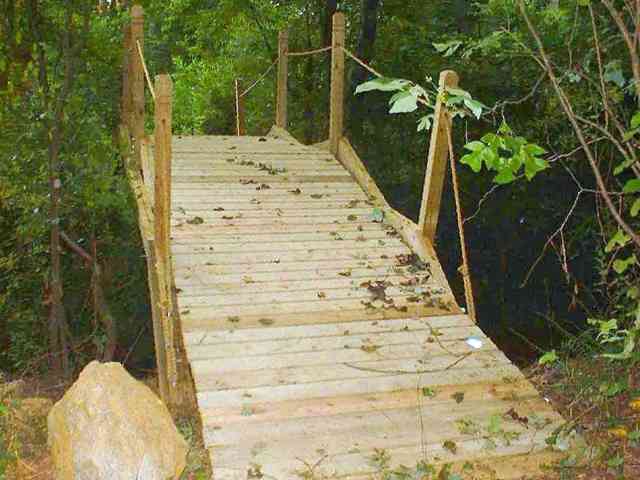

Getting it across the creek was easy.

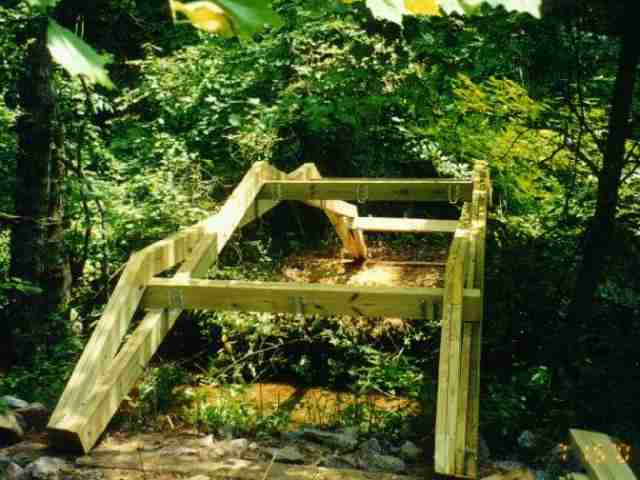

I assembled the frame in the back yard. Then I bought 2 cases of good Canadian beer.

Once my neighbors heard about the beer, the bridge got moved.

It took me and 7 guys less than 10 minutes to set it across the creek.

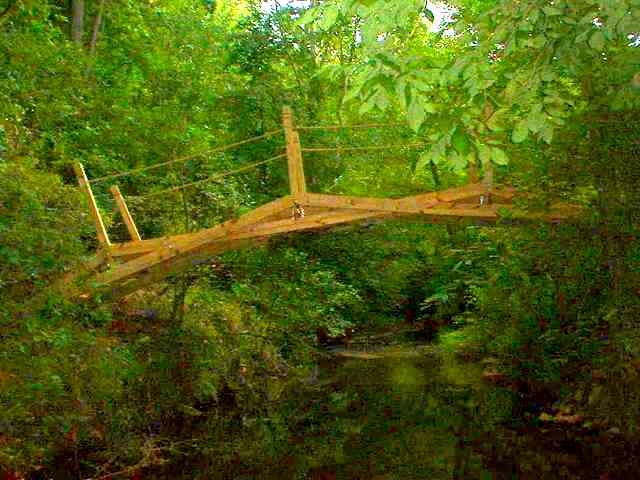

Everyone who sees it loves it. I used some 1 inch rope for the hand rail and it looks great.

Doug GA

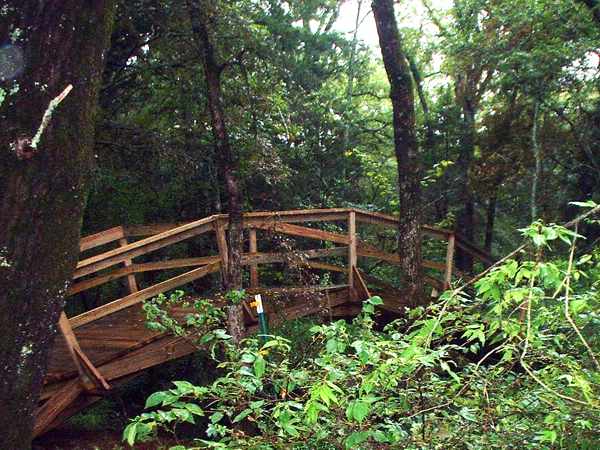

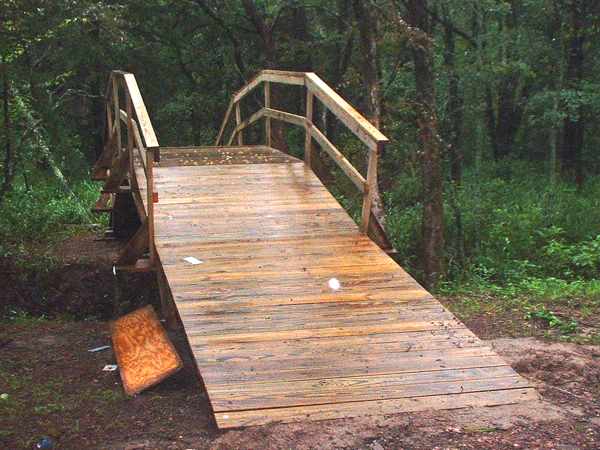

Hello Frank,
I finally finished the bridge down here in Texas.
It was a joy to build and see how everything fit together so nicely.
Thanks again for all your help.

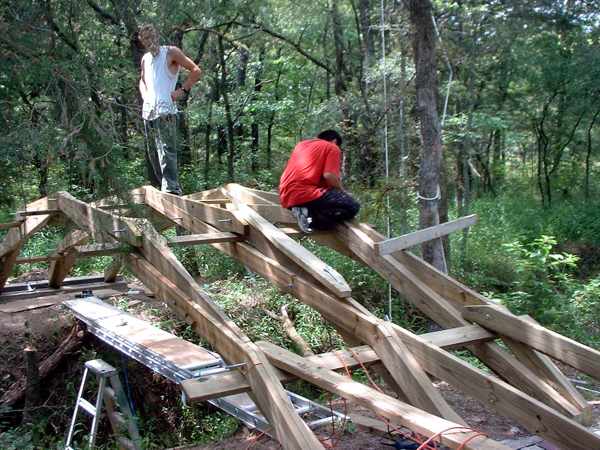

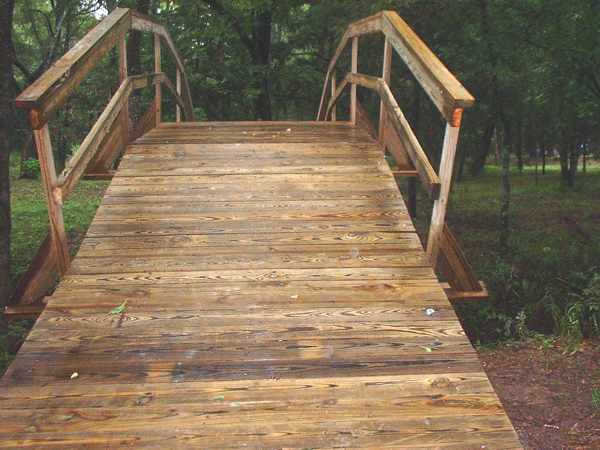

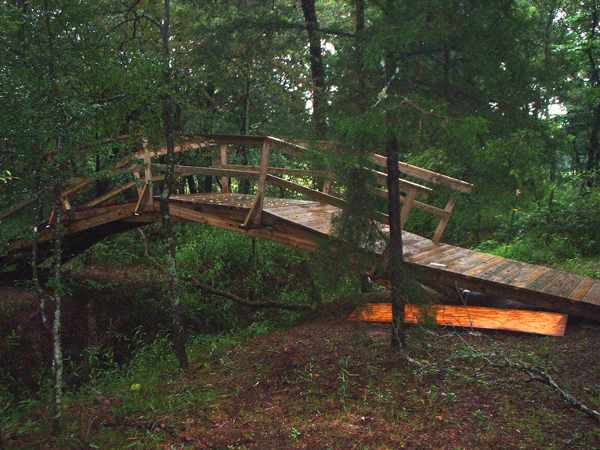

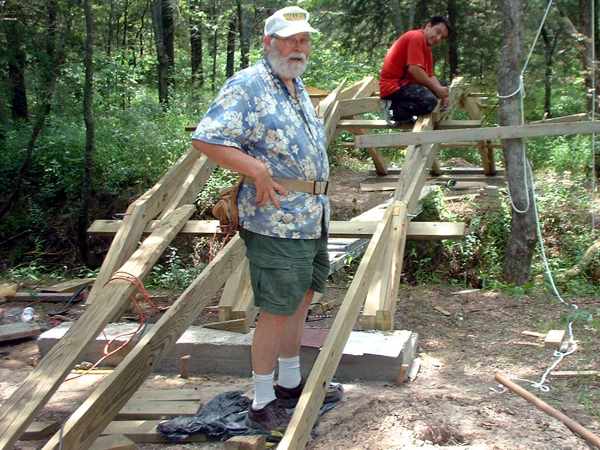

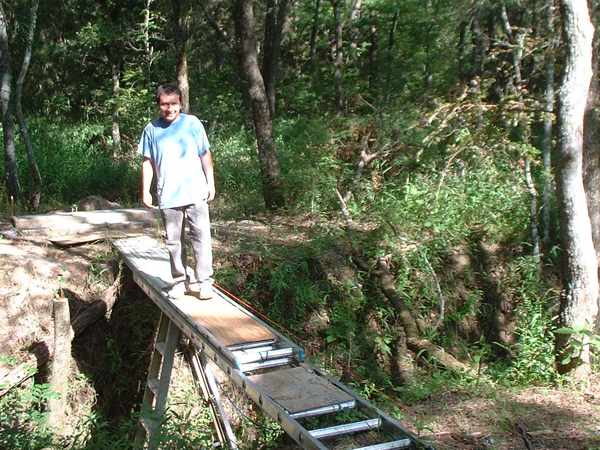

Here are some pics of before, during and after. Again, THANKS!
James M TX
