Photos of constructed bridges with the following spans:
·1'·7'·8'·11'·12'·14'·15'·16'·17'·18'·22'·23'·24'·25'·27'·27'·27'·28'·30'·32'·36'·38'·40'·50' ·
·0,3·2,1·2,4·3,3·3,8·4,2·4,5·4,8·5,1·5,4·6,6·6,9·7,3·7,5·8,1·8,1·8,1·8,4·9·9,6·10,8·11,4·12·15 ·m

24' / 7,3m
using single 2x4s

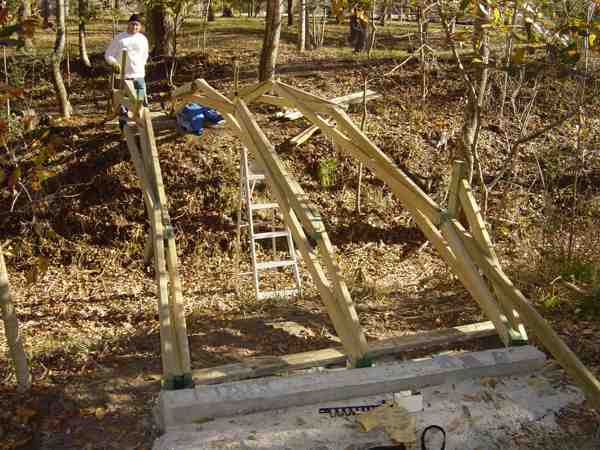

My son after we placed the arches

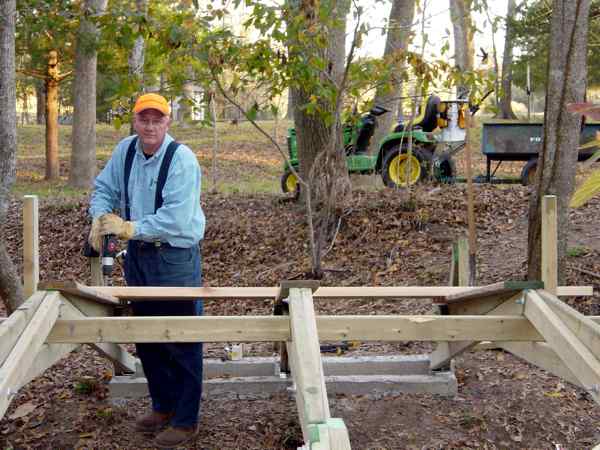

Myself adding decking to one end, you can see how we did the footings

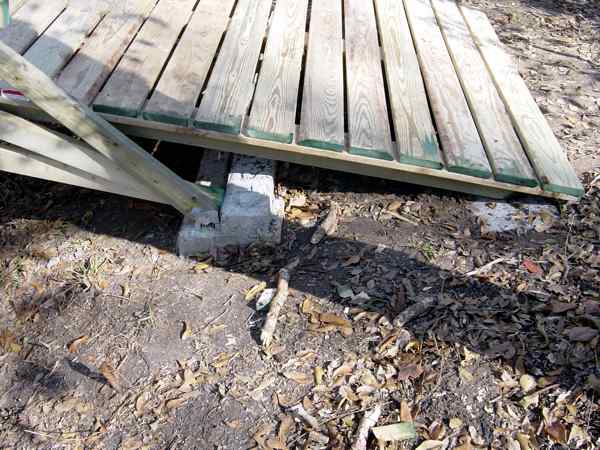

Close up of end ramp, more detail on footing

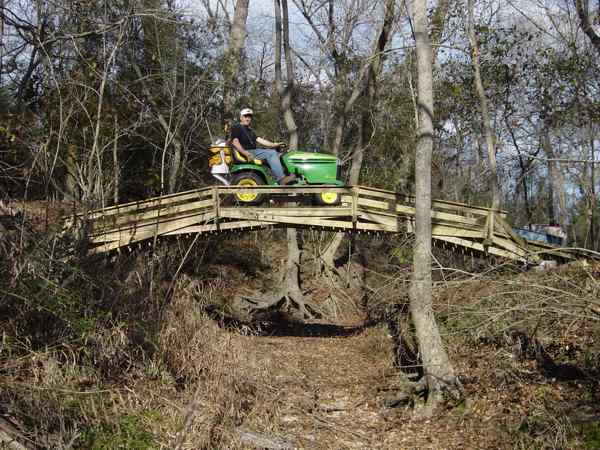

Myself driving our tractor across

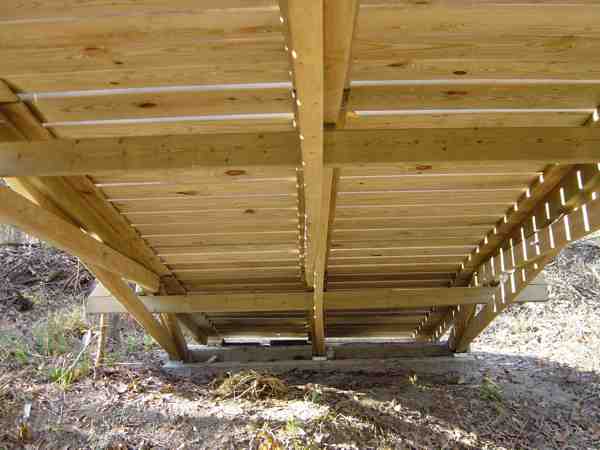

Under bridge view

My wife and I on the complete bridge

Overall, we're very pleased with your kit, the construction, beauty, and service.
Thanks,
Ronnie TX

Frank,

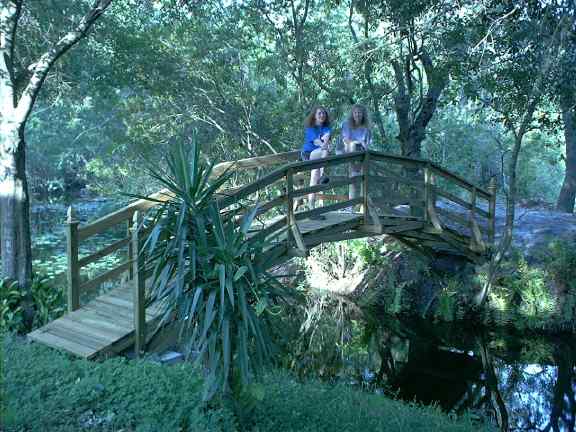

I am sending you a couple of pictures of a 24? bridge I built in Florida from a plan I bought from you.
It works very well to span from the back of our house to an island in the lake we own. We are very pleased with the way the bridge looks and how strong it is.
One of the pictures is of a visitor we got after the bridge was completed.
Thanks,
Marvin M FL

The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-) Frank Petersohn
