Assembling a Bridge Kit

Exlpoded diagram - larger picture

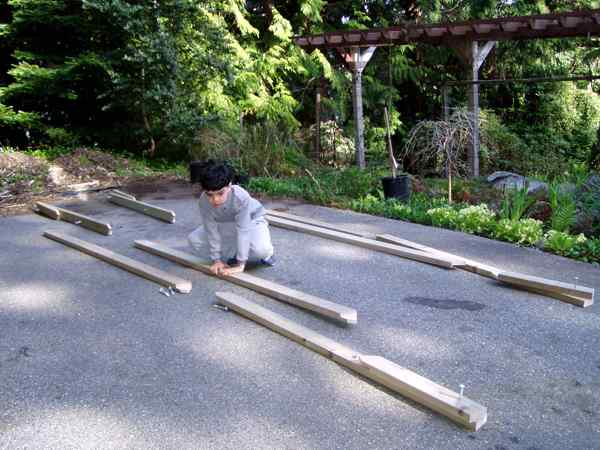

• Lay out the arch pieces symetrically.

  click for a larger picture

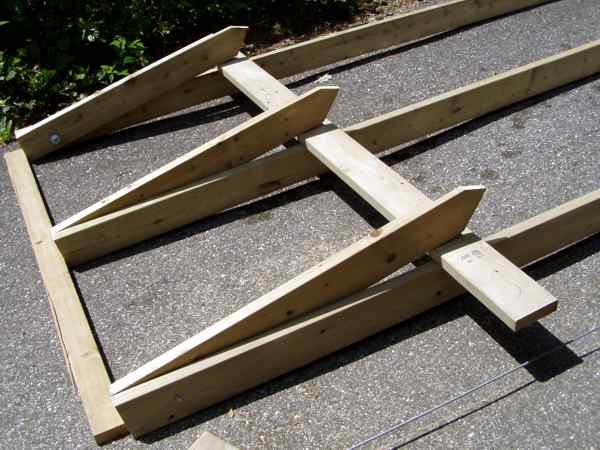

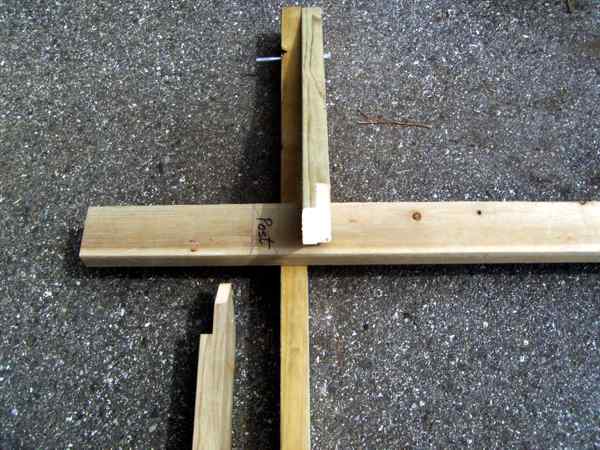

• Insert 5-1/2" bolt through the end pieces at the arch foot and slide the cross-beam under the short piece.
Push the cross-beam past the bolt hole above it.
Separate the arches so the X (for the railing post) on the cross-beam is just outside the arches.

  click for a larger picture click for a larger picture

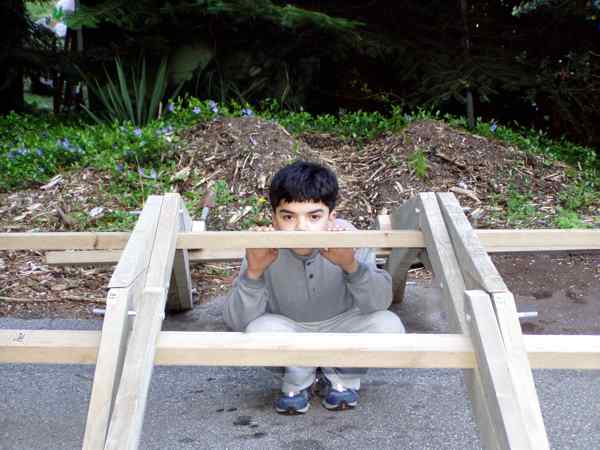

• Lift a long piece and

  click for a larger picture

• add the next (full length) piece by putting a 4-1/2" bolt through the crossing and mate the lap joint over the cross-beam.

  click for a larger picture click for a larger picture

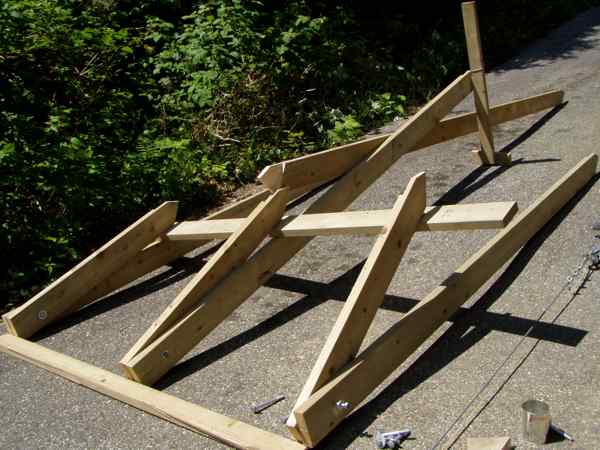

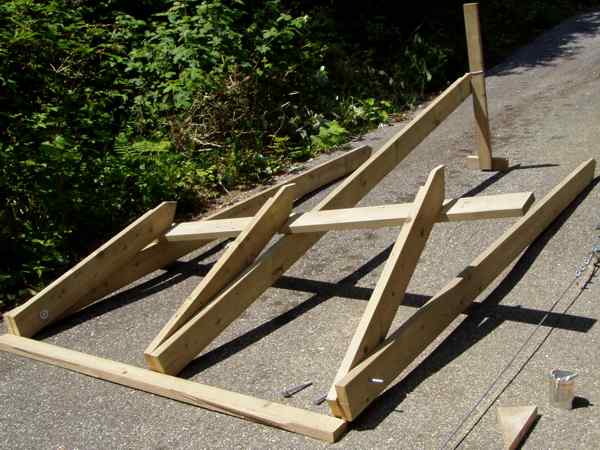

• Add the other 2 pieces
• Tap the cross-beam to center under the peak so that the lap joint fits.
Everything is shaky while you're adding pieces. Try to have someone hold the arch to keep it from tipping while you're completing the arch assembly.

  click for a larger picture

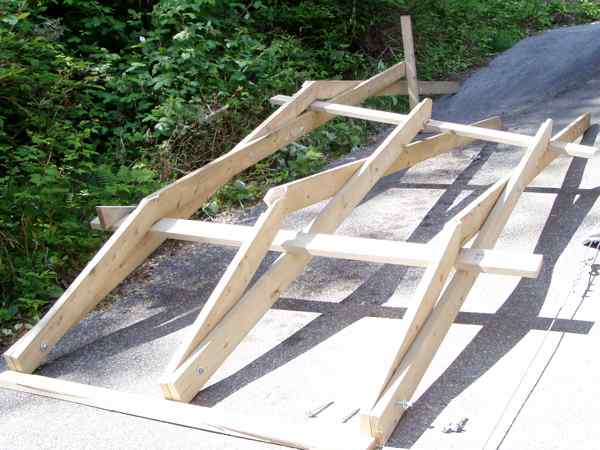

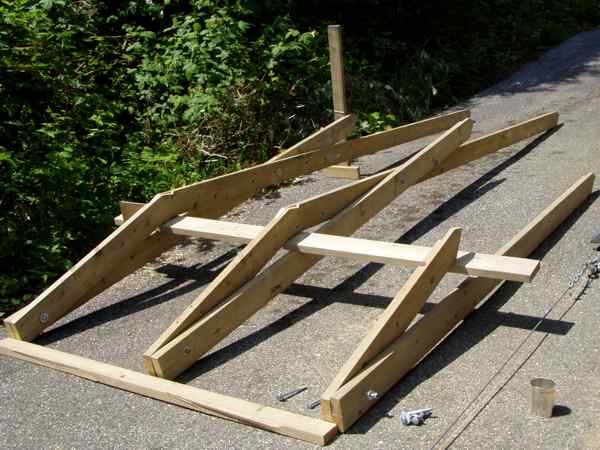

• add the next piece by putting a 4-1/2" bolt through the crossing and mate the lap joint over the cross-beam.

  click for a larger picture

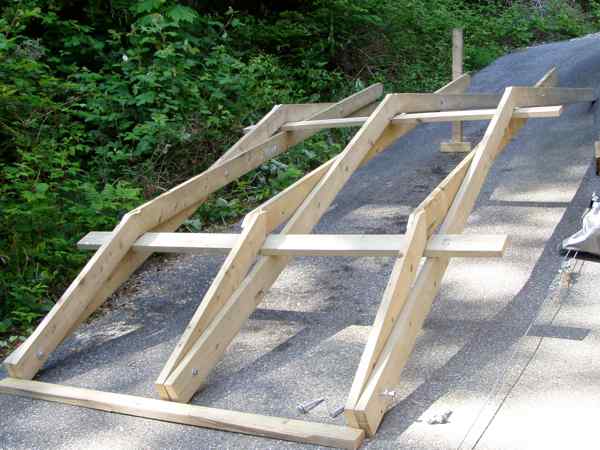

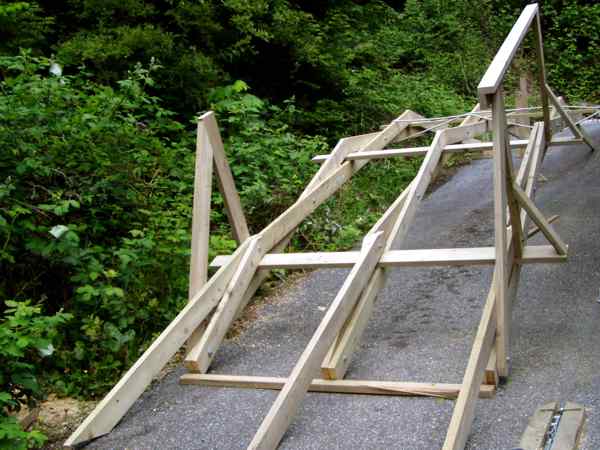

• Carry on adding arch pieces.

  click for a larger picture

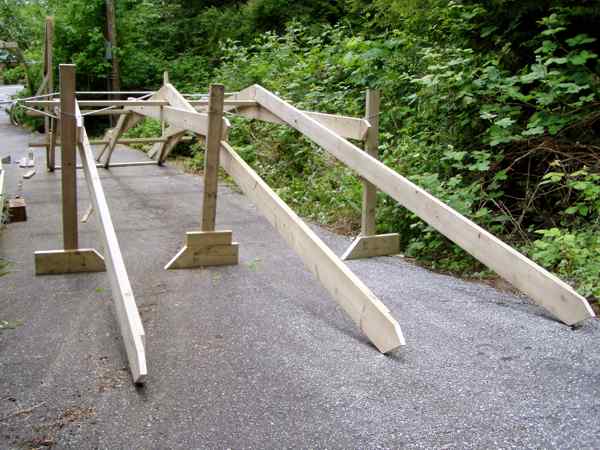

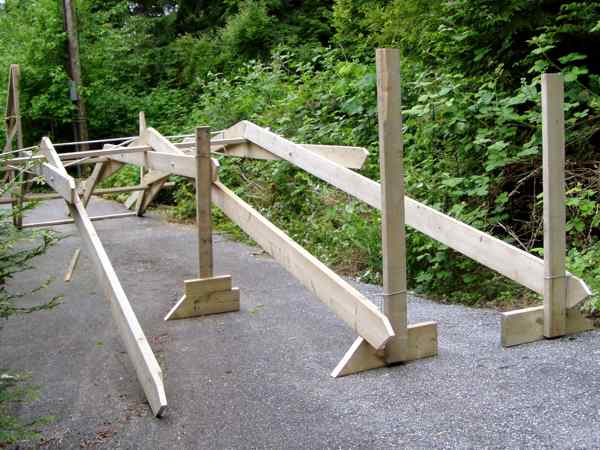

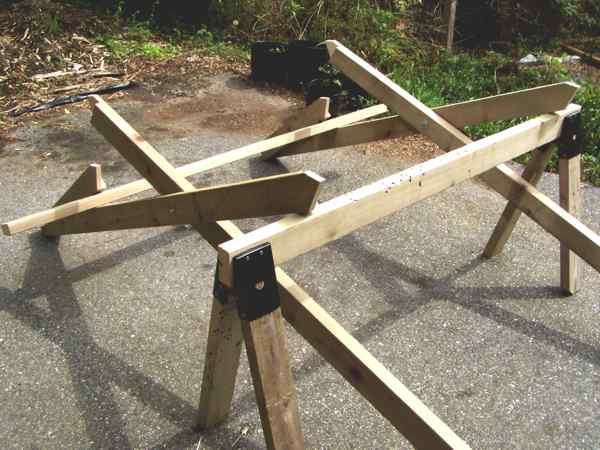

• For longer, heavier bridges you can take a scrap 2x4 and make a stand, as in the picture, and use a hanger to hold the lifted arch piece at a suitable height, while you're adding the next piece.

If you have a six-pack for a helper or two, you can forget the hangers.
  click for a larger picture

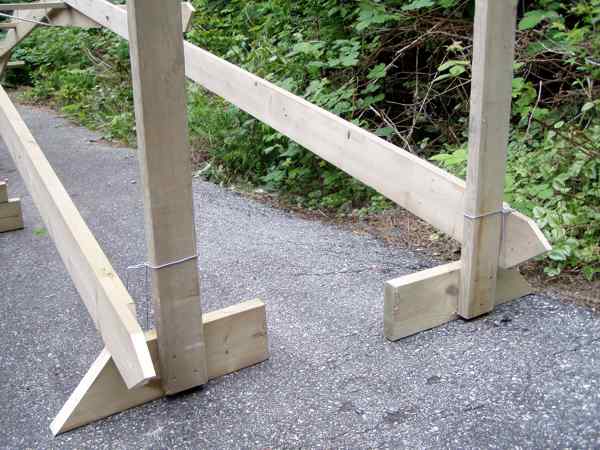

• Detail of the hanger.
  click for a larger picture

• Position the "jacks" as required to raise the arch assembly.

  click for a larger picture

• Whack the arches into line so they line up with the marks on the cross-beams and stand vertical.

  click for a larger picture

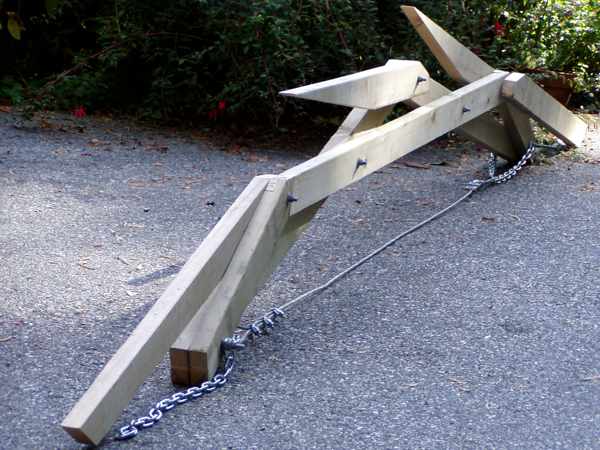

• All joists point in the same direction except at one end, where the end ramp and joist are fastened to the same arch peak with one longer bolt.

  click for a larger picture click for a larger picture

• Attach railing posts and the end post braces at one end only.
• Attach railings and side post braces.
• After everything, including decking, is screwed down, attach the end post brace at the other end.
  click for a larger picture


A final consideration:

• You see on the right that 2 bamboo slivers don't work as a beam bridge.
• In the middle, fixed as an arch between two "footings", they look promising but will obviously tip sideways, even with the lightest load.
• On the left, with only some plain paper for a "deck" as lateral bracing, they support over 4 lbs with no problem.
  click for a larger picture
During erection, do not tighten nuts.

After the arch assembly is completely erected, and railing posts are attached, snug up the nuts. Don't overtighten them as it will only crush the wood unneccessarily. Bolts carry no load and merely act as clamps to keep the wood lined up.

Bolts through the arch peaks can be temporarily removed, with no great difficulty, after the arch assembly is standing.

If you have difficulty inserting a bolt through an arch peak, despite cross beam & lap joint seemingly aligned for a reasonable fit, just ream out the misaligned bolt holes with a drill bit of your bolt size.

Before the arch is shoe-horned into the footings, it may seem longer and flatter than design so, depending on how you are holding or lifting it, the fit of the lapjoint may seem off. Once in place, you should be able to wiggle the arch in its proper shape.

This design has tremendous strength and load capacity, but only as long as the arches remain vertical.

For maximum strength and load capacity:

The longer the bridge and the heavier the load, the more important this becomes. On smaller bridges you might guarantee lateral stability by gluing and screwing the deck for each section in panels before laying those on the arch assembly with a few screws.

On larger bridges an easy way to guarantee lateral stability and erecting a straight arch assembly, is 16ga galvanized X-strap across each section before screwing down the deck planks.

You can also use this strap for easy arch foot protection & isolation
  click for a larger picture

click for a larger picture
In the US 84Lumber can have
Simpson Strong-Tie
drop ship you a roll of
CS16Z-150 16ga 1¼" galvanized coiled strap

USPconnectors.com
is another supplier
RS150 CS16

In Canada Home Hardware can supply either one.

Exploded View Of All The Parts


The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-)  Frank Petersohn
