Wooden Privacy and Puzzle Screens

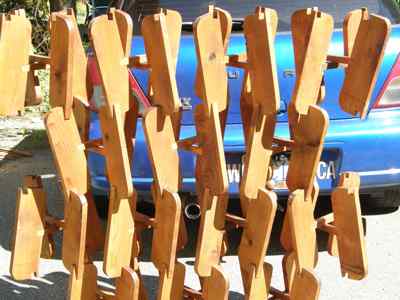

Here is an attention-getting Puzzle-Screen Puzzle Screen

Make a bunch of these and stack them as high and as long as you like.
Note that the cross bar is on one side of vertical centre. Looking down, 2 of these (one is upside down) will form an X.
Dimensions and shape don't matter as long as the top & bottom notches are in line vertically so your wall goes up straight.
Puzzle Screen Puzzle Screen

CAUTION: Your brain can hurt trying to figure out this one.
If you make the paddles symmetrical, like a vertical rectangle, oval or circle, you'll stack a regular, discernable pattern.

If you angle the paddles, as in the above template, each "X" (2 pairs pinned together) will have an up or a down orientation.

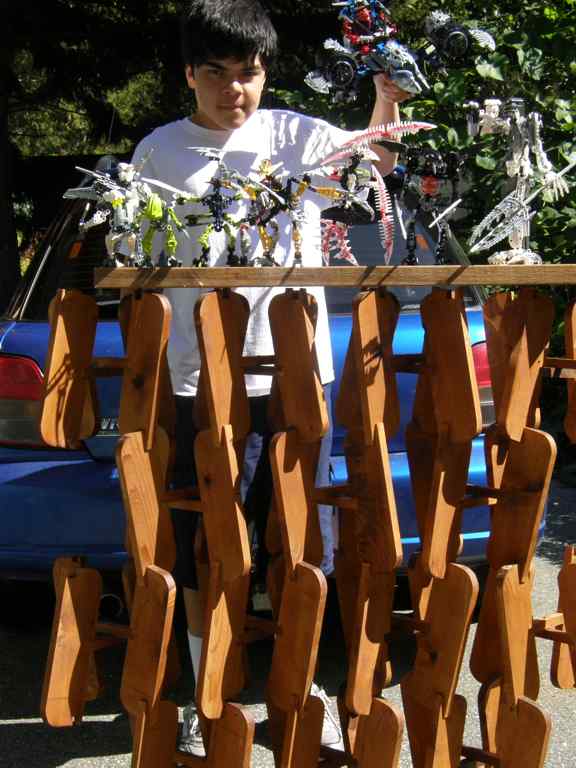

Paying attention to the orientation, you can stack an orderly, repeating pattern or a totally confusing array, like in the above photos.


Cut a pile of these Wooden Privacy Screen

and make Room Dividers, Privacy Screens, Feature Walls, Balcony Railings or Fencing Panels or . . . . . Wooden Privacy Screen

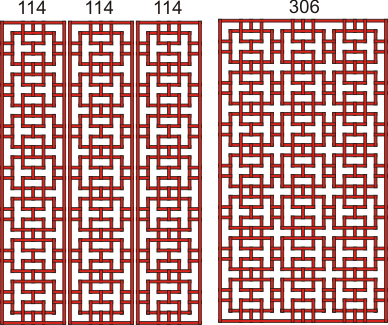

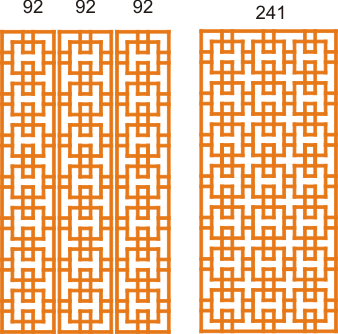

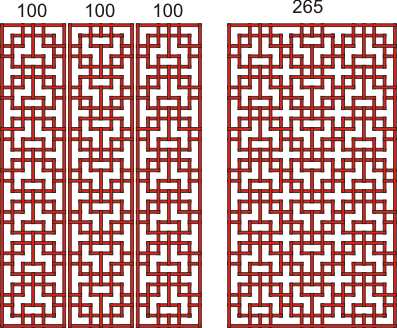

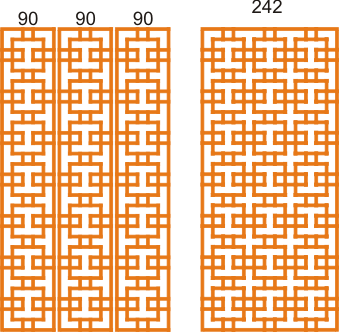

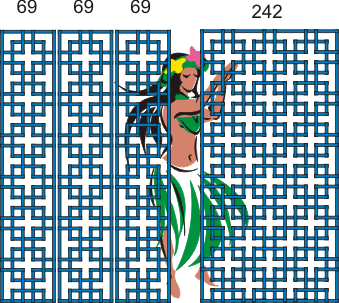

These are some sample patterns that can all be assembled by duplicating only one part.
The numbers on top of each pattern are a total parts count of full and shorter pieces.
One full piece can make 2 or 3 shorter pieces so you won't need all that many long pieces.
Wooden Privacy Screen

Dozens of sample patterns on one PDF File. Wooden Privacy Screen

Wooden Privacy Screen

Wooden Privacy Screen


The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-)   Frank Petersohn
