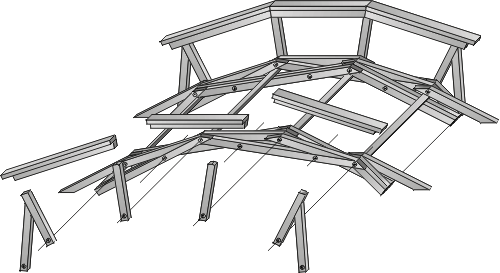

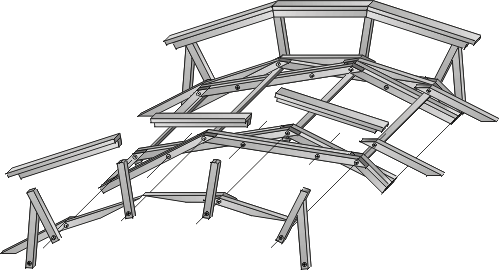

| Exploded View | Simplest Arch piece | Better Arch Piece |


All The Parts

click for parts dimensions
Bolt the arch segments together, at the crossings, with 7 inch bolts.



click for parts dimensions
Bolt the joists to the arch peaks using 8½ inch bolts with their heads on the inside of the arch.



click for parts dimensions
Add posts on the outside of the arch. Put railings on top of posts.



click for parts dimensions
Add decking and you're done.

The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-)  Frank Petersohn
