The Plans Below Use:
| 1x2s | 2x3s | 2x4s | 2 x 6s | 2x8s | Mid-span Bench |

These Plans are for lumber 1½" x 5½" ( 38mm x 140mm ) lumber
and may be suitable for spans up to 50' (15m),
slow garden machinery and pedestrian loads up to 1,000kg
with an appropriate number of arches and suitable Footings.

15' Bridge

Plan: $40 US
Wood bridges 16ft. to 40ft.

16'-9" Bridge

Plan: $40 US
Heavier bridges 16ft. to 40ft.

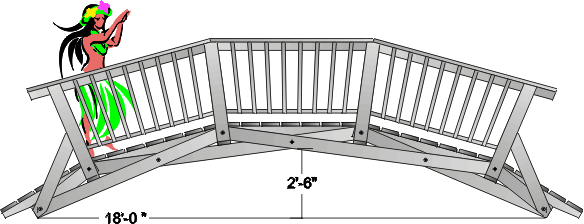

18' Bridge

Plan: $40 US
Heavier bridges 18ft. to 40ft.

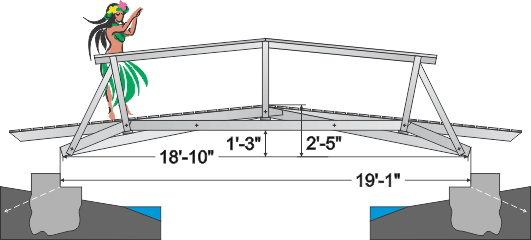

18'-10" Bridge

Plan: $40 US
Wood bridges 16ft. to 40ft.

19'-8" Bridge

Plan: $40 US
20' span wooden arch bridge

Heavier bridges 16ft. to 40ft.

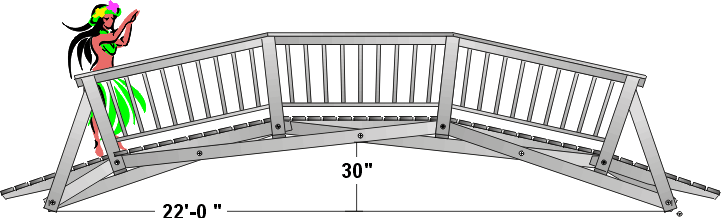

22' Bridge

Plan: $40 US
Heavier bridges 16ft. to 40ft.
  More Plans   Larger Spans

If you are interested in a bridge similar to the ones shown on this page,
please write me your requirements and I'll be glad to make a suggestion. :-)
Frank Petersohn

The design and construction techniques presented on this page are protected from patents by prior art & copyright and I reserve all rights regarding this design. Feel free to utilize this information for personal use but applications involving the exchange of money, require my approval. If you'd like to build bridges for profit, I'd be happy to help you. :-)  Frank Petersohn
